Pipe Setup Weld Clamp  Descriptions

A Pipe Setup Weld Clamp Is A Mechanical Alignment Tool Used During Pipeline Fabrication And Welding Activities To Hold, Align, And Support Pipe Ends Accurately Before Welding. This Type Of Clamp Ensures Proper Fit-up, Root Gap Alignment, And Stable Positioning Of Pipes During Welding Operations.

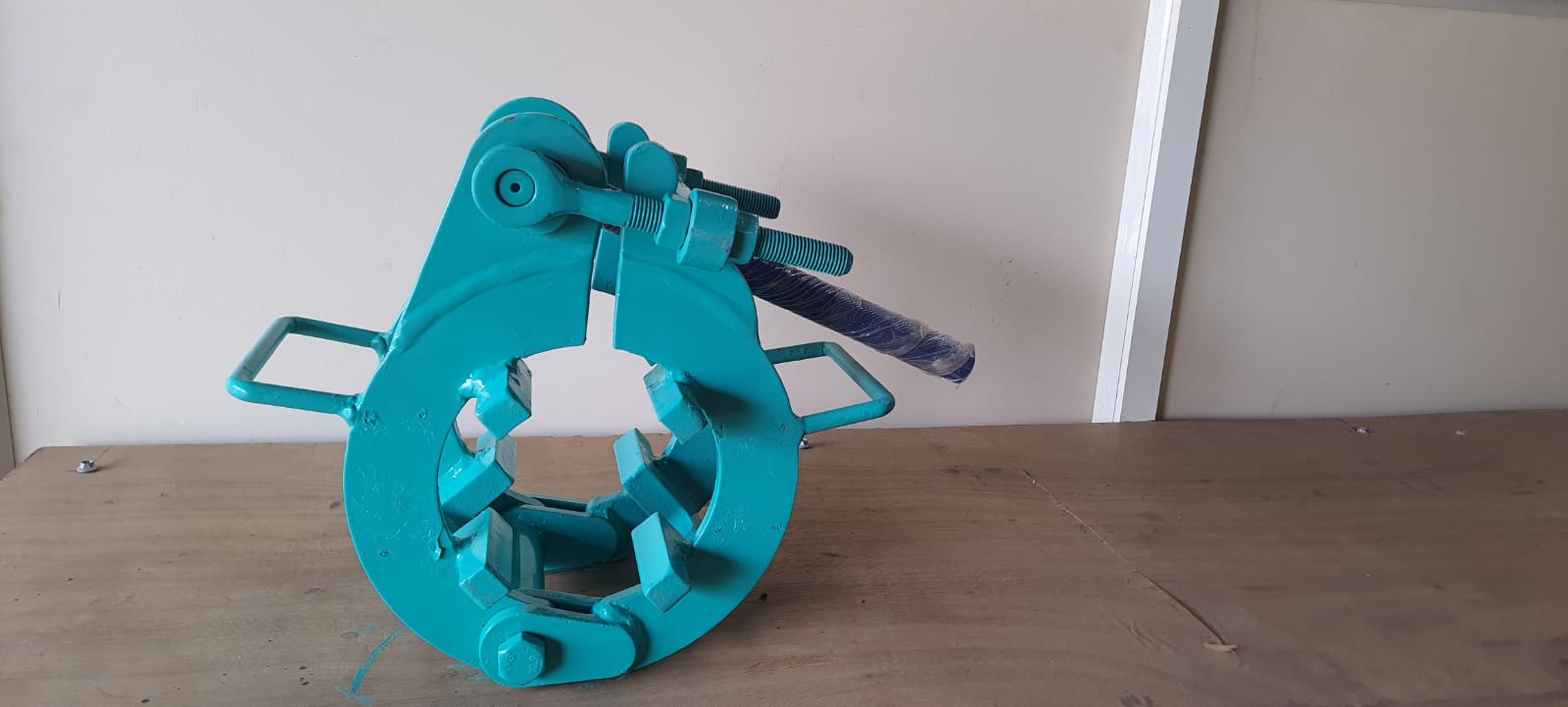

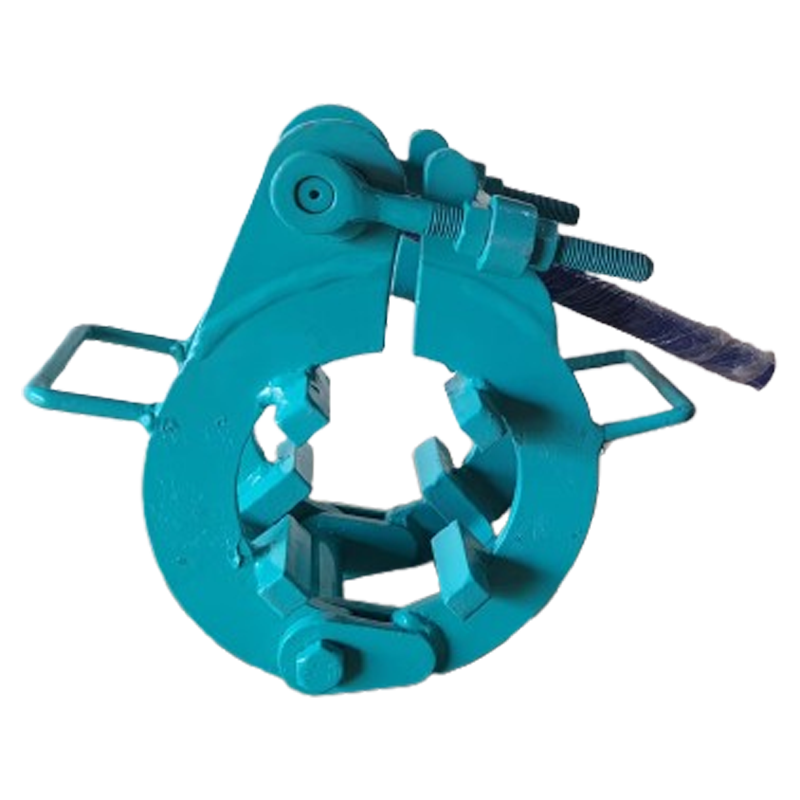

The Clamp Shown In The Image Is An External Pipe Alignment Clamp Commonly Used For Pipe-to-pipe Joint Setup In Fabrication Yards, Construction Sites, And Pipeline Installation Projects.

Applications

• Pipe Fit-up And Alignment
• Butt Welding Preparation
• Pipeline Fabrication
• Pipe Spool Assembly
• Oil & Gas Pipeline Construction
• Refineries And Petrochemical Plants
• Water And Process Piping Systems

Construction

• Heavy-duty Fabricated Steel Body
• External Clamp Type With Tightening Screw Mechanism
• Internal Gripping Jaws For Pipe Holding
• Manual Operating Handle For Quick Locking And Release
• Suitable For Various Pipe Diameters

Features

• Accurate Pipe Alignment Before Welding
• Quick Installation And Removal
• Strong Gripping Arrangement
• Reduces Welding Misalignment
• Improves Weld Quality And Productivity
• Reusable And Durable Construction
• Suitable For Onsite And Workshop Use

Working Principle

The Clamp Is Positioned Externally Around The Pipe Joint Area. By Tightening The Screw Mechanism, The Gripping Jaws Hold Both Pipe Ends Firmly And Maintain Proper Alignment During Tack Welding And Root Welding Operations.

Advantages

• Minimizes Fit-up Errors
• Reduces Welding Time
• Improves Joint Accuracy
• Easy Handling And Operation
• Suitable For Carbon Steel And Stainless Steel Pipes

Industries

• Oil & Gas
• Petrochemical
• Power Plants
• Water Treatment Plants
• Fabrication Workshops
• Process Industries

Material

• Carbon Steel
• Stainless Steel
• Alloy Steel (optional)

Size Range

Available For Different Pipe Sizes As Per Customer Requirement And Project Specification.
