Leading Hot Tap Tee Manufacturer, Supplier And Exporter In India

Jackwell Engineering LLP Is One Of The Leading Manufacturers And Suppliers Of High-quality Hot Tap Tees In India. Hot Tap Tee Fittings Are Specially Designed For Making Branch Connections On Existing Live Pipelines Without Shutting Down The Process Line. These Fittings Are Widely Used In Oil & Gas, Petrochemical, Refinery, Water Transmission, And Process Industries.

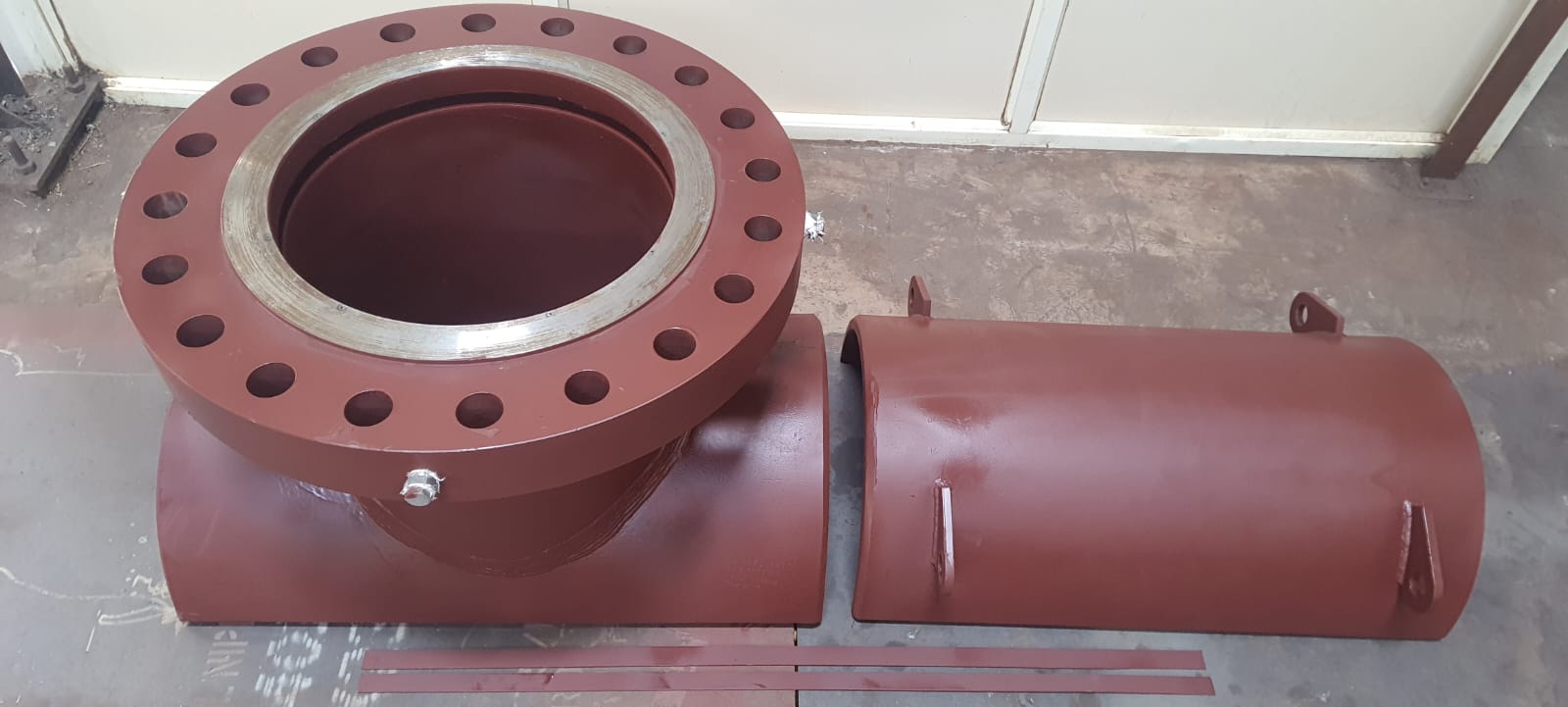

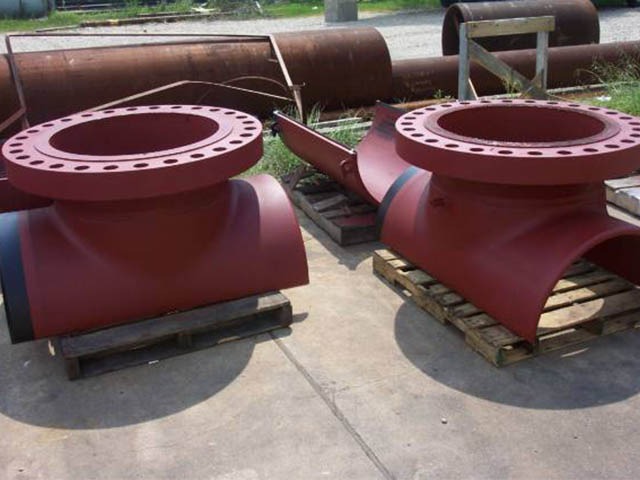

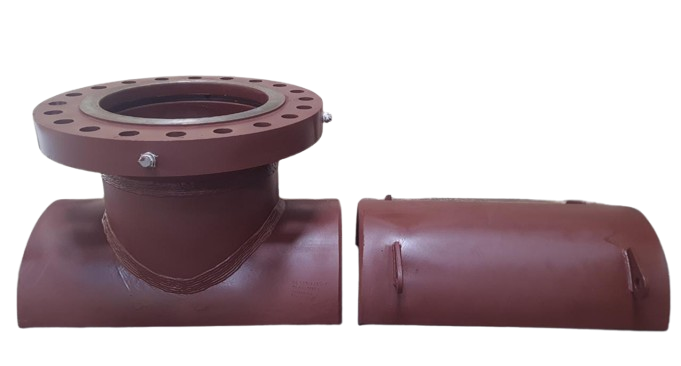

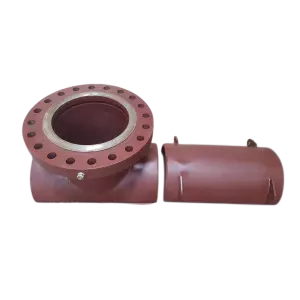

Hot Tap Tee Is A Fabricated Reinforced Fitting That Allows Safe Hot Tapping Operations Under Pressure And Continuous Service Conditions. The Fitting Provides Excellent Structural Reinforcement And Leak-proof Performance During Branch Connection Activities.

Working Principle

The Hot Tap Tee Is Welded Around The Existing Live Pipeline. After Installation:

• Isolation Valve Is Mounted On The Branch Flange.
• Hot Tapping Machine Is Connected To The Valve.
• Cutter Drills Through The Pipeline Wall Under Pressure.
• Pipe Coupon Is Removed Safely.
• New Branch Connection Becomes Operational Without Shutdown.

This Process Helps Industries Avoid Production Losses And Costly Shutdowns.

Features

• No Pipeline Shutdown Required
• Safe Live Tapping Operation
• Heavy-duty Reinforced Construction
• High-pressure And High-temperature Capability
• Leak-proof Welded Design
• Long Service Life
• Suitable For Onshore And Offshore Pipelines
• Available In Custom Sizes And Pressure Ratings

Applications

• Oil & Gas Pipelines
• Refineries
• Petrochemical Plants
• Power Plants
• Water Transmission Pipelines
• Chemical Industries
• Offshore Platforms
• Process Piping Systems

Design Codes And Standards

Hot Tap Tees Are Designed And Manufactured According To International Standards Including:

• ASME B31.3 – Process Piping
• ASME B31.4 – Liquid Transportation Systems
• ASME B31.8 – Gas Transmission Pipelines
• ASME Section VIII
• MSS SP-97
• API 1104
• ASME PCC-2

Pressure Rating: #150 To #1500

Material Grades

• ASTM A516 Gr.70
• ASTM A105
• API 5L Grades
• Stainless Steel Grades

Inspection And Testing

• Hydrostatic Testing
• Ultrasonic Testing (UT)
• Magnetic Particle Inspection (MPI)
• Dye Penetrant Testing (DPT)
• Radiography Testing (RT)
• Dimensional Inspection

Available Types Of Hot Tap Tees

• Split Tee
• Full Encirclement Tee
• Welded Branch Tee
• Flanged Hot Tap Tee
• Mechanical Hot Tap Tee

Jackwell Engineering LLP Offers Customized Hot Tap Tee Solutions With High-quality Manufacturing Standards, Reliable Performance, And Timely Delivery For Domestic And International Projects.
