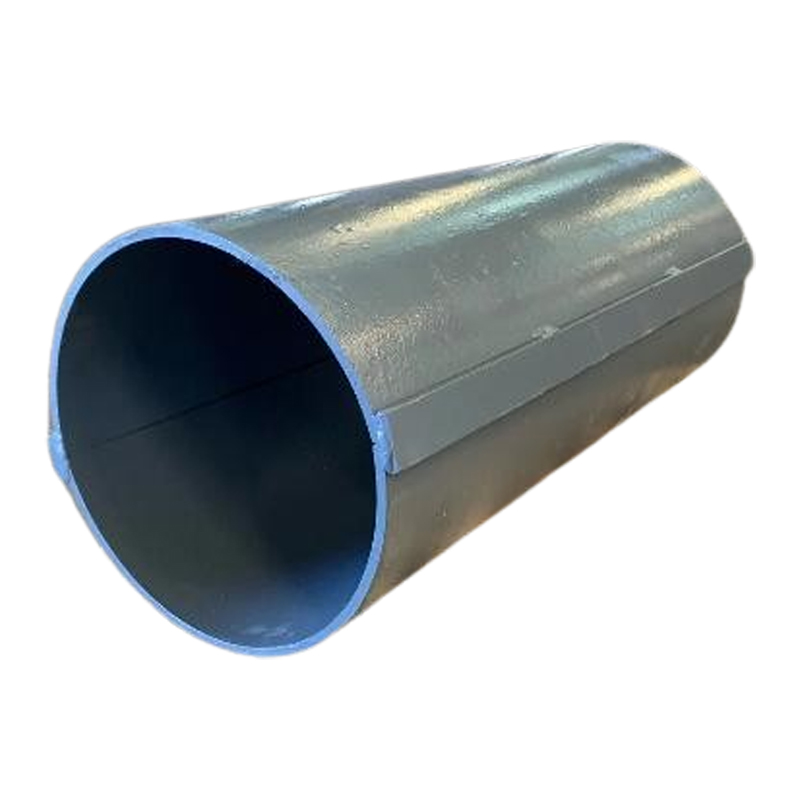

Pipeline Reinforcement Sleeve

Leading Pipeline Reinforcement Sleeve Manufacturer, Supplier And Exporter In India

Jackwell Engineering LLP Is One Of The Leading Manufacturers And Suppliers Of High-quality Pipeline Reinforcement Sleeves In India. These Sleeves Are Specially Designed For Strengthening Damaged, Corroded, Dented, Or Weakened Pipeline Sections And Restoring Pipeline Integrity Without Replacing The Complete Pipe Section.

Pipeline Reinforcement Sleeves Are Widely Used In Oil & Gas, Petrochemical, Refinery, Water Transmission, And Process Industries For Permanent Pipeline Repair And Rehabilitation Applications.

Pipeline Reinforcement Sleeve Descriptions

A Pipeline Reinforcement Sleeve Is A Fabricated Steel Sleeve Installed Externally Over A Damaged Pipeline Section To Provide Structural Reinforcement And Pressure Containment. The Sleeve Helps Restore The Pipeline’s Mechanical Strength And Prevents Further Propagation Of Cracks, Corrosion, Or Defects.

The Sleeve May Be Welded Or Mechanically Installed Depending On Service Conditions And Project Requirements.

Working Principle

The Reinforcement Sleeve Is Installed Over The Defective Pipeline Area After Proper Surface Preparation And Inspection. The Sleeve Is Then Welded Or Clamped Around The Pipe To Transfer Stress From The Damaged Section To The Reinforcement Sleeve.

The Sleeve Provides:

• Structural Strengthening
• Pressure Containment
• Crack Arresting Capability
• Corrosion Protection

This Method Allows Safe Repair While Minimizing Pipeline Shutdown And Replacement Costs.

Features Of Pipeline Reinforcement Sleeve

• Permanent Pipeline Repair Solution
• High Structural Reinforcement Capability
• Suitable For High-pressure Pipelines
• Extends Pipeline Service Life
• Reduces Maintenance And Shutdown Costs
• Suitable For Onshore And Offshore Pipelines
• Custom-designed As Per Pipeline Conditions
• Available For Large Diameter Pipelines

Applications

• Corroded Pipeline Repair
• Dent And Crack Reinforcement
• Pipeline Rehabilitation
• Weld Joint Strengthening
• Mechanical Damage Repair
• Oil & Gas Transmission Lines
• Refineries And Petrochemical Plants
• Water And Utility Pipelines

Design Codes & Standards

Pipeline Reinforcement Sleeves Are Designed And Manufactured According To International Pipeline Repair Standards Including:

• ASME PCC-2 – Repair Of Pressure Equipment And Piping
• ASME B31.3 – Process Piping
• ASME B31.4 – Liquid Transportation Systems
• ASME B31.8 – Gas Transmission Pipelines
• API 1104 – Welding Of Pipelines
• API 579 / ASME FFS-1
• ISO Pipeline Repair Standards
• Client Project Specifications

Pressure Rating

Pipeline Reinforcement Sleeves Are Designed According To Pipeline Operating Pressure, Pipe Wall Thickness, Material Grade, And Defect Condition.

Typical Pressure Ranges:

• Low Pressure: Up To 10 Bar
• Medium Pressure: Up To 40 Bar
• High Pressure: Up To 150 Bar Or Higher Upon Request

Pressure Design Depends On:

• Pipe Outside Diameter (OD)
• Wall Thickness
• Pipeline Material Grade
• Operating Temperature
• Type And Size Of Defect
• Design Factor And Safety Requirements

Types Of Reinforcement Sleeves

• Type A Reinforcement Sleeve
• Type B Pressure Containment Sleeve
• Full Encirclement Sleeve
• Split Sleeve Repair
• Welded Reinforcement Sleeve
• Mechanical Reinforcement Sleeve

Materials Available

• Carbon Steel
• Stainless Steel
• Alloy Steel
• Duplex Stainless Steel
• Super Duplex Stainless Steel

Inspection & Testing

• Hydrostatic Testing
• Ultrasonic Testing (UT)
• Magnetic Particle Inspection (MPI)
• Dye Penetrant Testing (DPT)
• Dimensional Inspection
• Material Traceability

Industries Served

• Oil & Gas
• Petrochemical
• Refineries
• Power Plants
• Chemical Industries
• Water Transmission
• Offshore Platforms
• Pipeline Construction Companies

Jackwell Engineering LLP Offers Customized Pipeline Reinforcement Sleeve Solutions With High-quality Manufacturing Standards, Engineering Support, Reliable Performance, And Timely Delivery For Domestic And International Projects.
