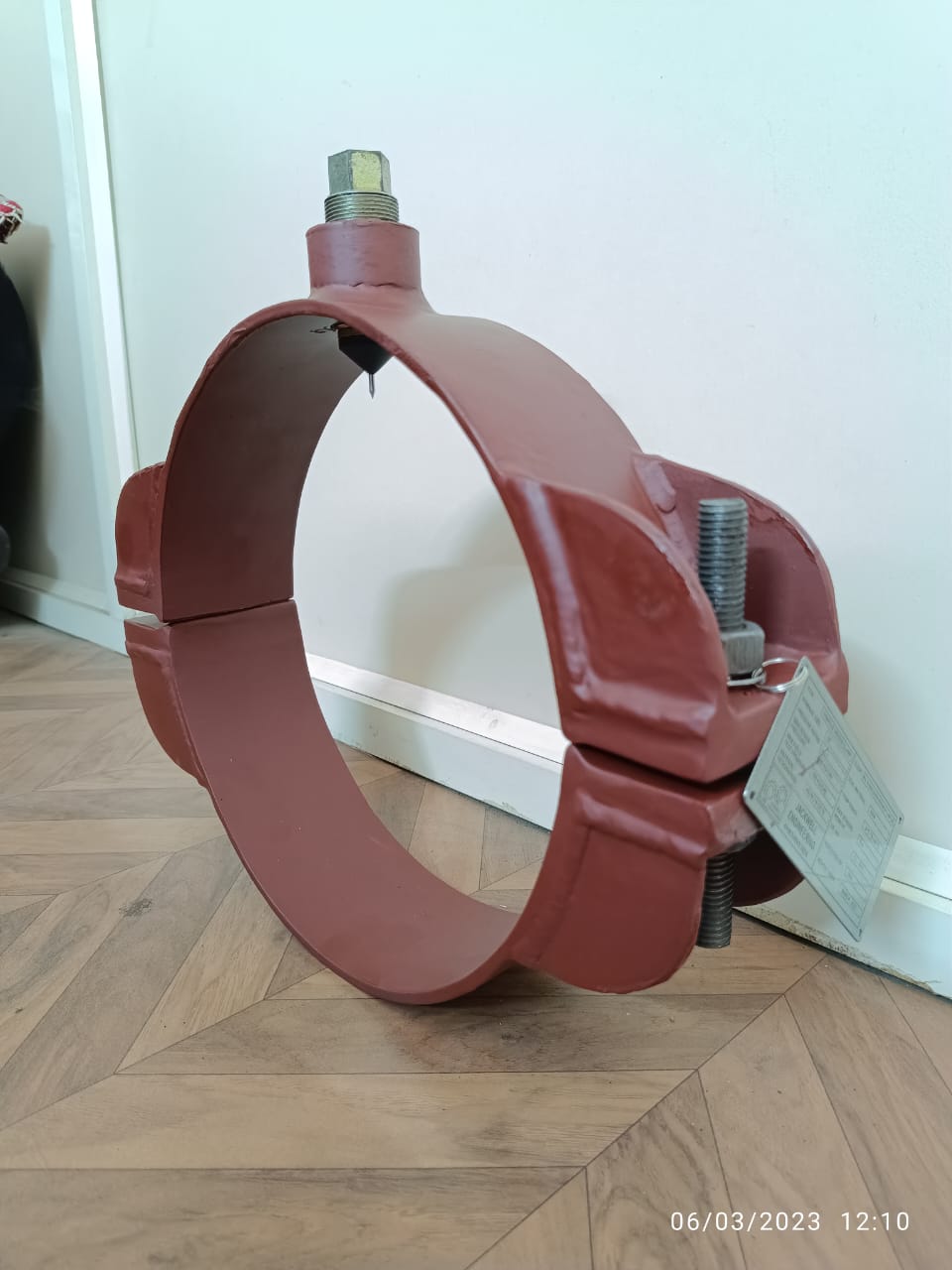

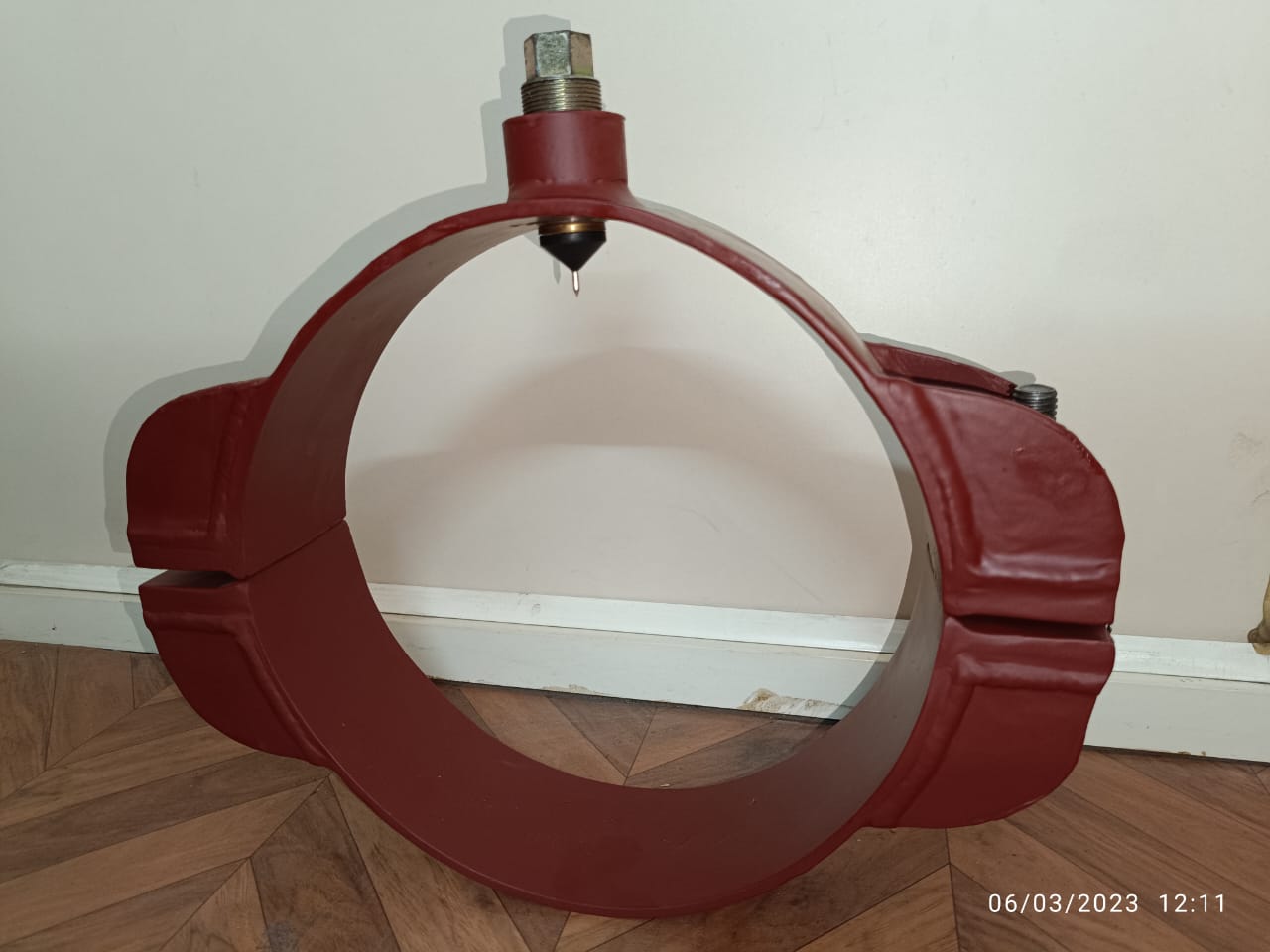

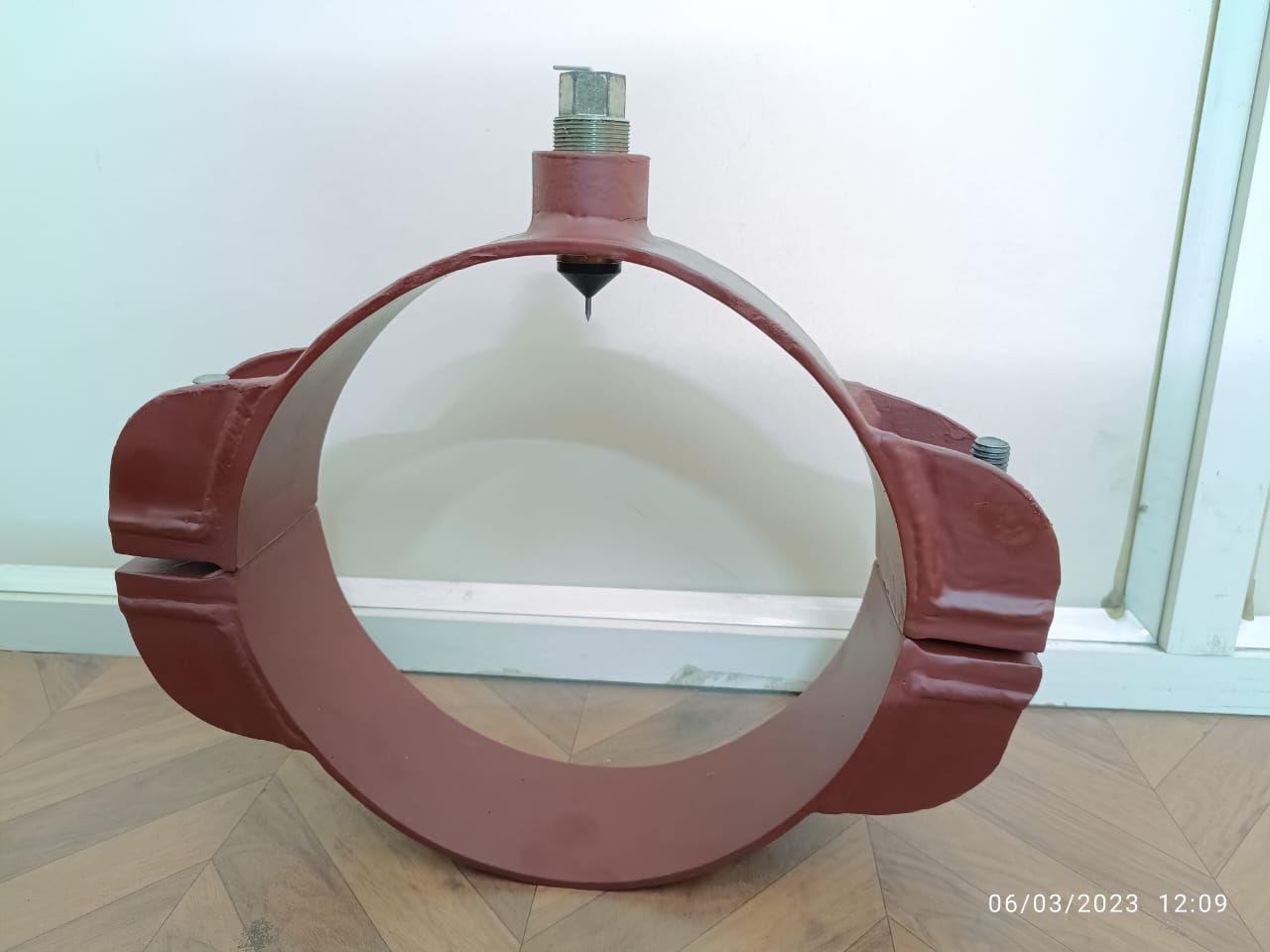

PIPELINE REPAIR PINHOLE CLAMP:

A Pin Hole Repair Clamp Is A Temporary Or Permanent Leak Repair Solution Used To Stop Leakage From Pin Holes, Small Cracks, Or Localized Corrosion On Pipelines Without Shutting Down The Line. The Clamp Is Designed To Provide Quick Sealing And Structural Support For Pressurized Piping Systems.

PIN-HOLE CLAMP DESIGN PRESSURE:

• ASME PCC-2, ASME B31.3 / B31.4 / B31.8
• Pressure Ratings: ANSI Pressure Classes 300, 400, 600, 900 And 1500

STANDARD MATERIAL:

• SHELL : SA 516 GR.70 / Stainless Steel AISI 304 / 316
• STIFFENERS : ASTM A105 / AISI 304 / AISI 316
• STUD & NUT: ASTM A193 GR.B7 & ASTM A194 GR.2H FOR NUT
• SEAL / GASKET : VITON / NBR (Temp Range: -20 C To +150 C)
• PACKING FORCE SCREW: ASTM A105
• PILOT PIN:  SS 316
• THRUST WASHER: BRASS

CERTIFICATE & TESTING:

• 100% Non Destructive Testing (NDT) – LPT , MPT , UT As Applicable
• Hydro-test As 1.5 X Design Pressure.
• CERTIFICATION EN 10204:3.1 / 3.2 PROVIDED AS REQUEST

Manufacturing Size Range :
