Pipeline Coupling Manufacturer

Leading Pipeline Coupling Manufacturer, Supplier And Exporter In India

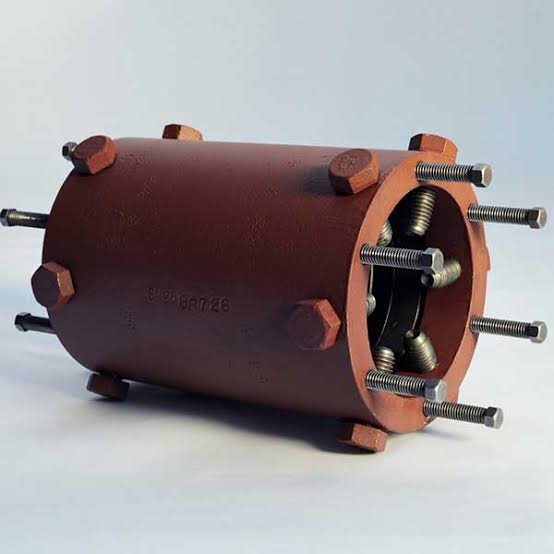

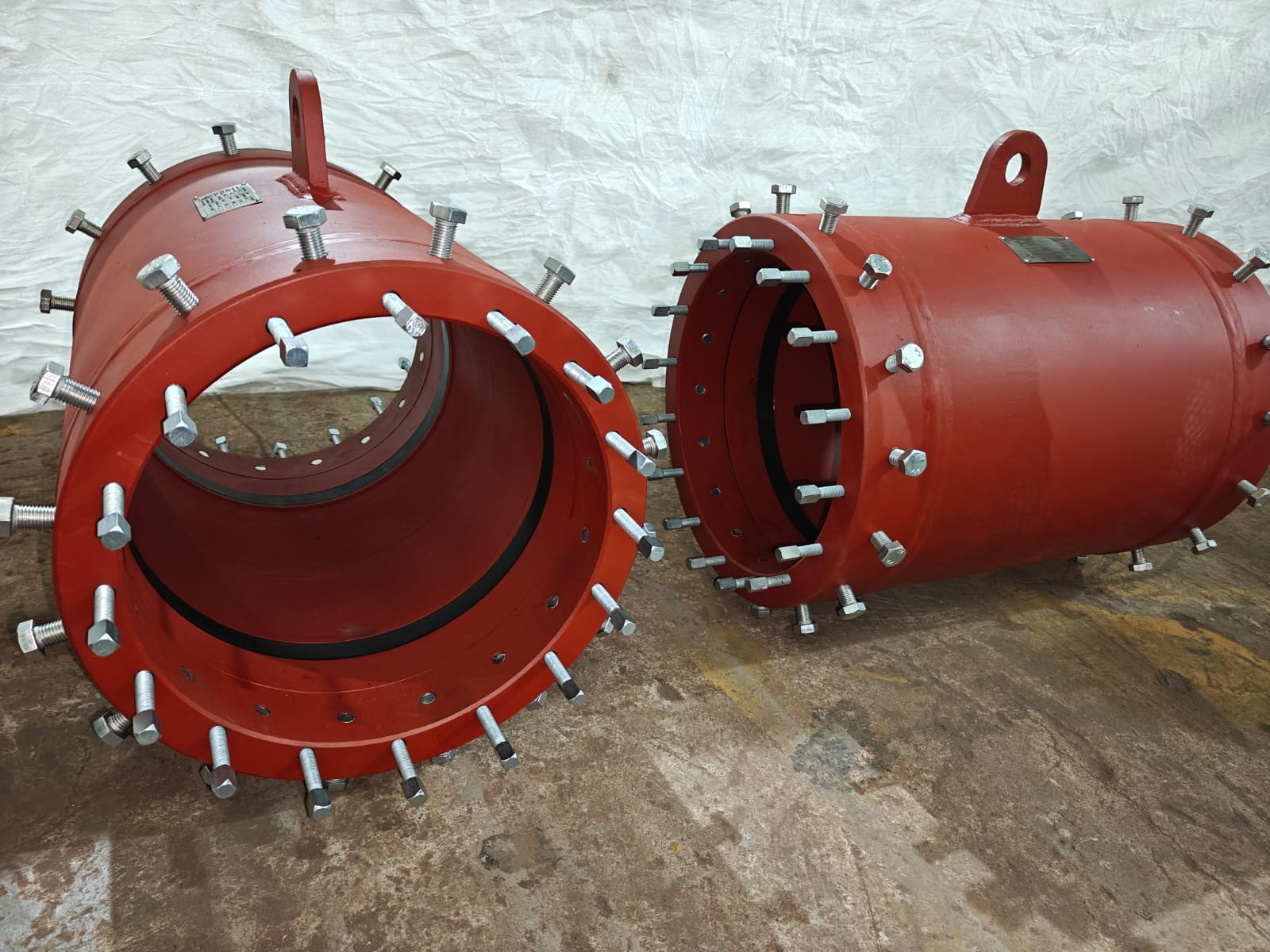

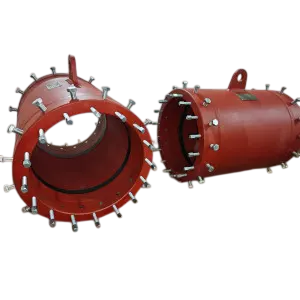

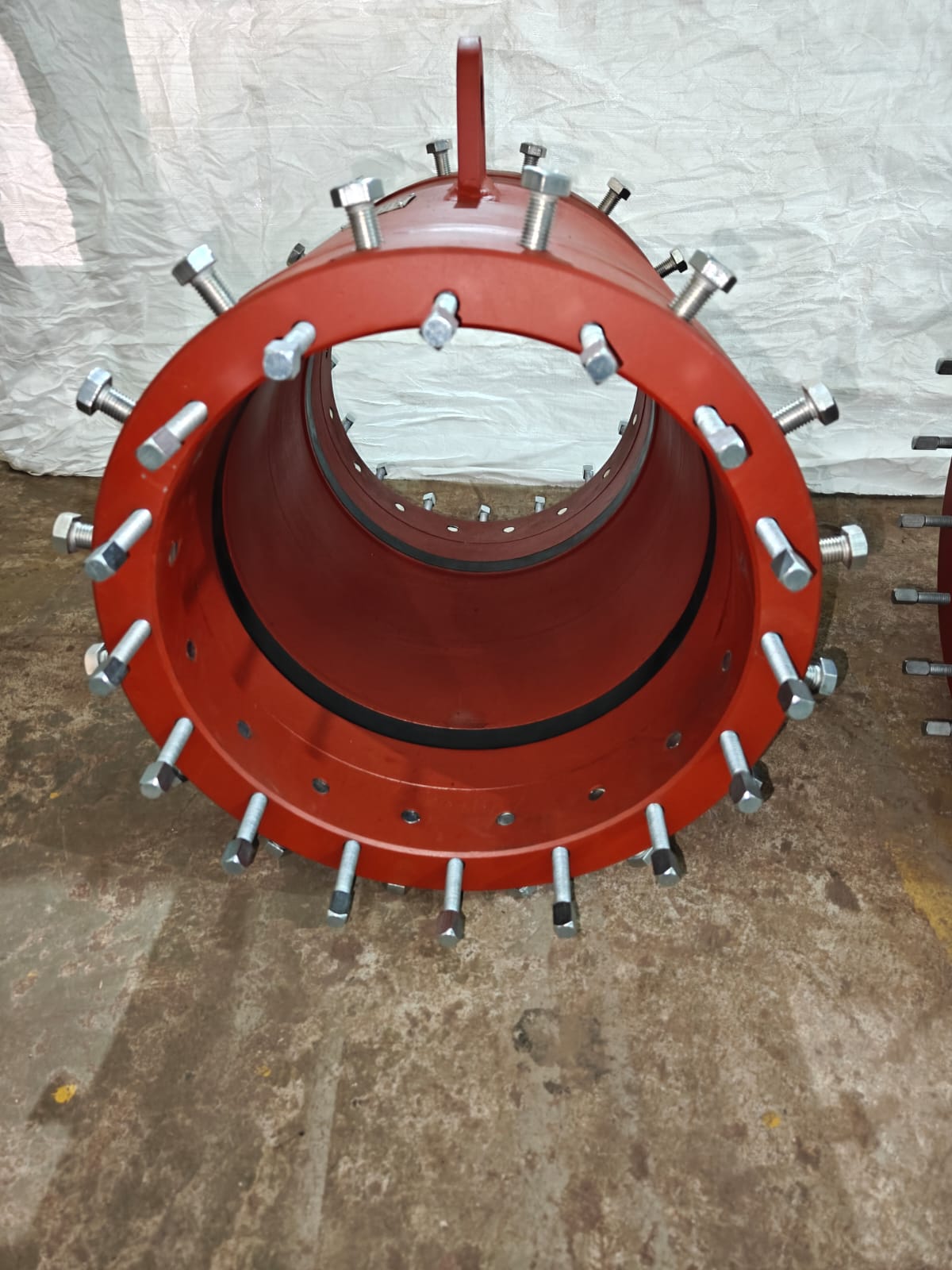

Jackwell Engineering LLP Is A Leading Manufacturer And Supplier Of High-quality Pipeline Couplings For Pipeline Repair, Joining, And Maintenance Applications. The Coupling Shown In The Image Is A Heavy-duty Bolted Pipeline Coupling Designed For Joining Or Repairing Pipelines Safely Under Various Operating Conditions.

Pipeline Couplings Are Widely Used In Oil & Gas, Petrochemical, Refinery, Water Transmission, Power Plants, And Process Industries For Leak Repair, Pipe Joining, And Pipeline Maintenance Operations.

Pipeline Coupling Descriptions

A Pipeline Coupling Is A Mechanical Pipe Joining Device Used To Connect Two Pipe Ends Or Repair Damaged Pipeline Sections Without Extensive Welding Or Pipeline Replacement. The Coupling Provides Leak-proof Sealing And Structural Integrity For Pipelines Operating Under Pressure.

These Couplings Are Available In Split Type, Bolted Type, Repair Type, And Full Encirclement Designs Depending On Application Requirements.

Working Principle

The Pipeline Coupling Is Installed Externally Over The Pipe Joint Or Damaged Section. By Tightening The Bolts Uniformly, The Internal Sealing Gasket Compresses Against The Pipe Surface And Creates A Leak-proof Seal.

The Coupling Body Provides:

• Mechanical Pipe Joining
• Pressure Containment
• Leak Sealing
• Structural Reinforcement

This Method Ensures Quick Installation And Minimizes Downtime During Maintenance Or Repair Activities.

Features Of Pipeline Coupling

• Leak-proof Sealing Performance
• Heavy-duty Fabricated Construction
• High-pressure Capability
• Easy Installation And Maintenance
• Suitable For Underground And Above-ground Pipelines
• Corrosion-resistant Design
• Available In Customized Sizes And Pressure Ratings
• Long Service Life

Applications

• Pipeline Joining
• Pipeline Repair
• Leak Sealing Applications
• Corroded Pipe Restoration
• Water Transmission Pipelines
• Oil & Gas Pipelines
• Refineries And Petrochemical Plants
• Fire Fighting Systems
• Utility And Process Piping Systems

Design Codes & Standards

Pipeline Couplings Are Designed And Manufactured According To International Standards Including:

• ASME B31.3 – Process Piping
• ASME B31.4 – Liquid Transportation Systems
• ASME B31.8 – Gas Transmission Pipelines
• ASME PCC-2 – Repair Of Pressure Equipment And Piping
• API 6H
• API 1104
• MSS Standards
• Client Project Specifications

Pressure Rating

Pipeline Couplings Are Designed Based On:

• Pipe Outside Diameter
• Pipe Wall Thickness
• Operating Pressure And Temperature
• Fluid Service Condition
• Pipeline Material Grade

Typical Pressure Ranges:

• Low Pressure: Up To 10 Bar
• Medium Pressure: Up To 40 Bar
• High Pressure: Up To 100 Bar Or Higher Upon Request

Custom Pressure Ratings Are Available According To Project Requirements And Design Calculations.

Materials Available

• Carbon Steel (SA 516 Gr.70 & Higher Grade As Per Client Request.)
• Stainless Steel (AISI 304/316)

Sealing Materials

• Nitrile Rubber (NBR)
• EPDM
• Neoprene
• Viton

Inspection & Testing

• Hydrostatic Testing
• Pneumatic Leak Testing
• Ultrasonic Testing (UT)
• Magnetic Particle Inspection (MPI)
• Dye Penetrant Testing (DPT)
• Dimensional Inspection
• Material Traceability

Types Of Pipeline Couplings

• Split Repair Coupling
• Mechanical Coupling
• Full Encirclement Coupling
• Welded Coupling
• Bolted Pipe Coupling
• Leak Repair Coupling

Industries Served

• Oil & Gas
• Petrochemical
• Refineries
• Power Plants
• Water Treatment
• Chemical Industries
• Offshore Platforms
• Pipeline Construction Companies

Jackwell Engineering LLP Offers Customized Pipeline Coupling Solutions With High-quality Manufacturing Standards, Engineering Support, Reliable Performance, And Timely Delivery For Domestic And International Projects.
